Ductile Iron Backing Ring

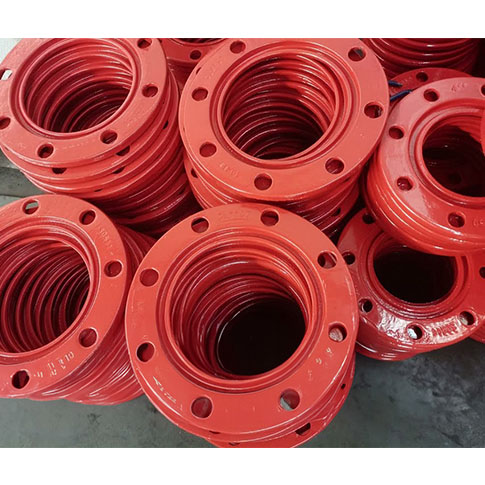

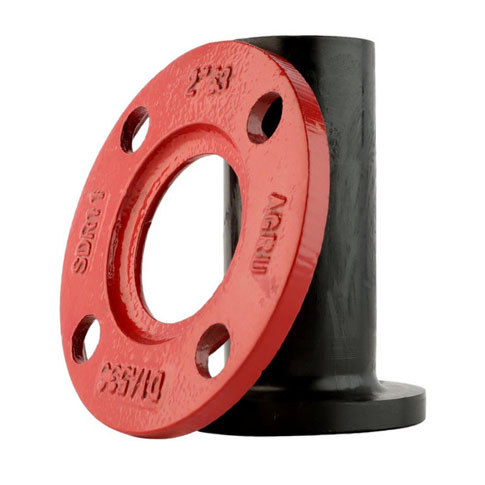

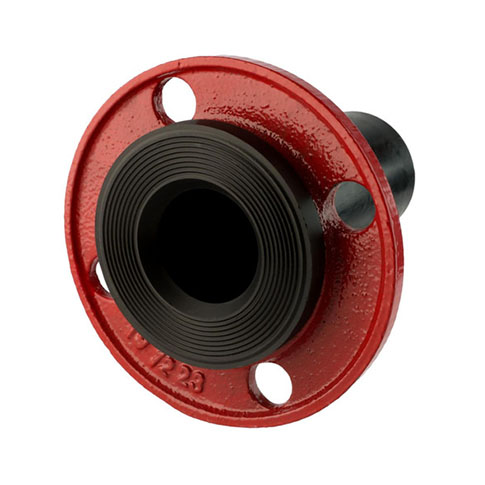

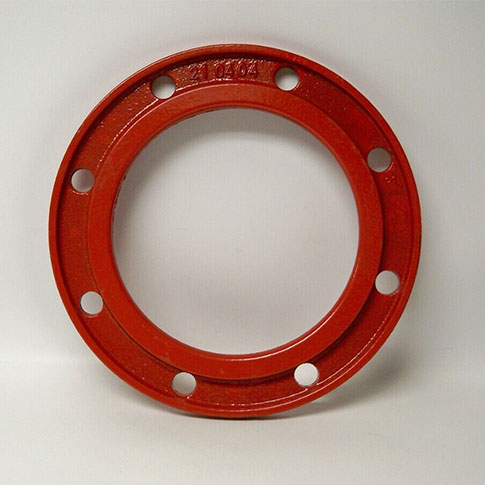

Ductile Iron Backing Ring

1. Raw Materials: Ductile Iron to ASTM A536 Gr64/45/12
2. Diameter : 1 inch – 24 inch
3. Surface finish : Painted, Fusion bounded epoxy resin
4. Standards: ANSI B16.5 Class 150

Email: [email protected]

Send Email By WhatsApp Inquiry Now

Specification Of Backing Ring

Specification Of Backing Ring

Puhui can provide Stainless or Galvanised Metal Backing Rings Flange, Ductile Iron Backing Ring, PP Flange and PP Coated Steel Flange.

Main Uses

Stabilizes flange connections in non-self-supporting pipe installations.
Ensures even bolt tension to maintain joint integrity.
Serves as a solid support for plastic pipe flange adaptors.

Applications

Used in water and wastewater infrastructure.
Applied in industrial and marine piping systems.
Integral to gas and oil pipeline safety.

Advantages

Exceptional strength for high-stress environments.
Flexibility to prevent cracking under pressure.
Corrosion resistance for longevity.
Versatile fit for various pipe sizes and materials.

Size	Pressure	SDR	Type	OD	ID	T	Bolt No.	Bolt Hole Dia	Bolt Hole Circle
								B.D.	B.C.
1″	267 PSI	7	C	4.25	1.38	0.56	4	0.63	3.12
1 1/4″	267 PSI	7	C	4.62	1.72	0.63	4	0.63	3.5
1 1/2″	267 PSI	7	C	5	1.97	0.69	4	0.63	3.88
2″	267 PSI	7	C	6	2.46	0.75	4	0.75	4.75
2 1/2″	267 PSI	7	C	7	2.97	0.88	4	0.75	5.5
3″	267 PSI	7	C	7.5	3.6	0.94	4	0.75	6
4″	267 PSI	7	C	9	4.6	0.94	8	0.75	7.5
5″	267 PSI	7	C	10	5.69	0.94	8	0.88	8.5
6″	267 PSI	7	C	11	6.75	1	8	0.88	9.5
8″	267 PSI	7	C	13.5	8.75	1.12	8	0.88	11.75
10″	267 PSI	7	C	16	10.92	1.19	12	1	14.25
12″	267 PSI	7	C	19	12.92	1.5	12	1	17

Size	Pressure	SDR	Type	OD	ID	T	Bolt No.	Bolt Hole Dia	Bolt Hole Circle
								B.D.	B.C.
2″	160PSI	11	B	6	2.64	0.51	4	0.75	4.75
3″	160PSI	11	B	7.5	3.75	0.53	4	0.75	6
4″	160PSI	11	B	9	4.8	0.55	8	0.75	7.5
6″	160PSI	11	B	11	6.9	0.63	8	0.88	9.5
8″	160PSI	11	B	13.5	8.9	0.87	8	0.88	11.75
10″	160PSI	11	B	16	11	0.98	12	1	14.25
12″	160PSI	11	B	19	13.15	1.26	12	1.13	18.75
14″	160PSI	11	B	21	14.4	1.38	12	1.13	21.25
16″	160PSI	11	B	23.5	16.4	1.65	16	1.13	21.25
18″	160PSI	11	B	25	18.4	1.69	16	1.25	22.75
20″	160PSI	11	B	27.5	20.5	1.81	20	1.25	25
22″	160PSI	11	B	29.5	22.5	2.01	20	1.38	27.25
24″	160PSI	11	B	32	24.5	2.17	20	1.38	29.5

Size	Pressure	SDR	Type	OD	ID	T	Bolt No.	Bolt Hole Dia	Bolt Hole Circle
								B.D.	B.C.
2″	267 PSI	7	B	6	2.63	0.75	4	0.75	4.75
3″	267 PSI	7	B	7.5	3.75	0.94	4	0.75	6
4″	267 PSI	7	B	9	4.75	0.94	8	0.75	7.5
6″	267 PSI	7	B	11	6.88	1	8	0.88	9.5
8″	267 PSI	7	B	13.5	8.88	1.12	8	0.88	11.75
10″	267 PSI	7	B	16	11	1.19	12	1	14.25
12″	267 PSI	7	B	19	13.13	1.5	12	1	17
