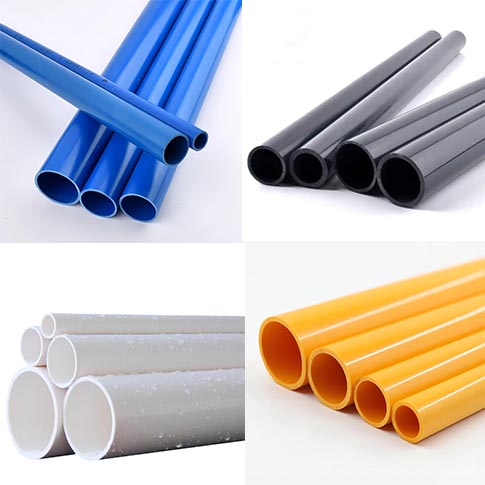

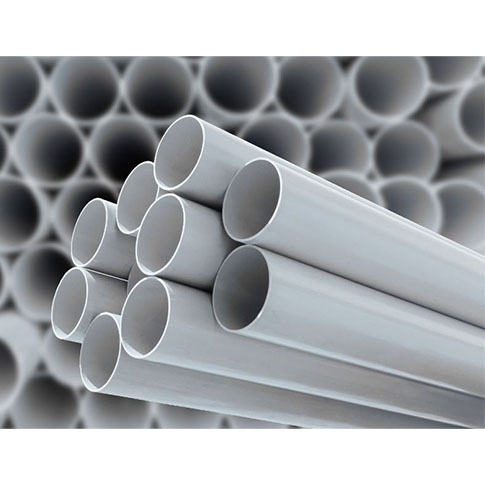

Quanlity Rigid PVC Pipes - Puhui Industry

Learn More About - PVC pipe

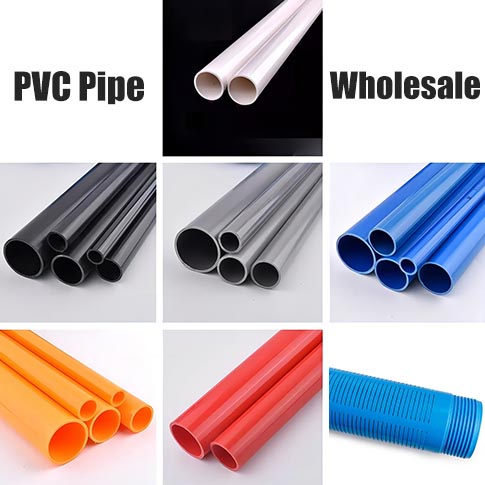

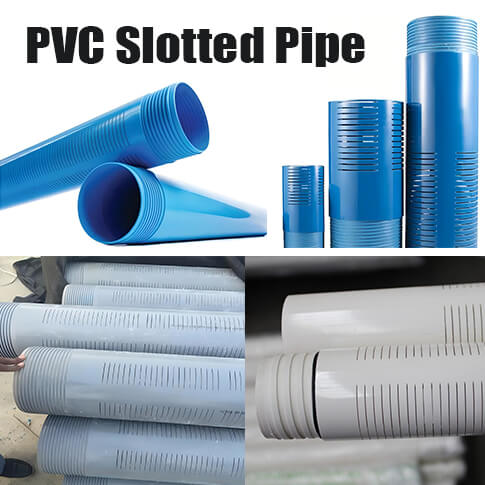

We can provide UPVC ,CPVC, OPVC Pipe and PVC Borehole Casing

Application of PVC Pipe

» Urban Tap Water Supply

» Industrial Water Supply

» Underground Fire Water Supply

» Building Drainage

» Agricultural Irrigation

» Electric Cable Cover

Advantages of PVC Pipe

Durability and Rigidity: PVC pipes stand out in practical applications due to their exceptional rigidity and durability, effortlessly handling high-pressure demands.
Cost-Effectiveness: PVC pipes offer a competitive edge in terms of cost, providing significant savings for projects without compromising quality.
Chemical Corrosion Resistance: The excellent chemical corrosion resistance of PVC pipes makes them the ideal choice for combating various corrosive substances, ensuring long-term stability of the system.

PVC Pipe vs. HDPE Pipe vs. PPR Pipe

Feature	PVC Pipes	HDPE Pipes	PPR Pipes
Rigidity	High	Low	Moderate
Chemical Resistance	Excellent	Excellent	Good
Cost	Low	Moderate	High
Installation Ease	High	Low	Moderate

If you have any inquiry about PVC Pipe and Fittings, Contact Us Now! Get A Free Quote Quickly!

Please Contact us to Get More Details or Price, Send Email: [email protected] or WhatsApp:+86 17335597909 .

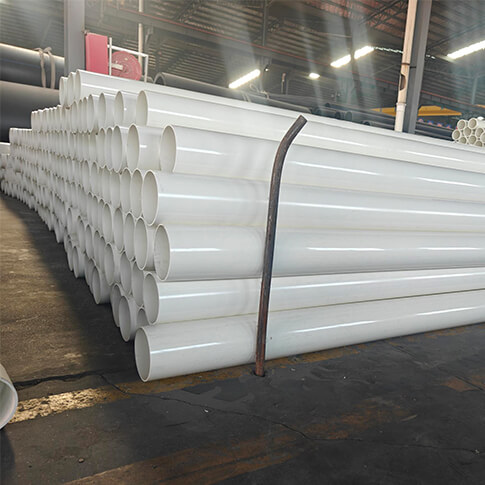

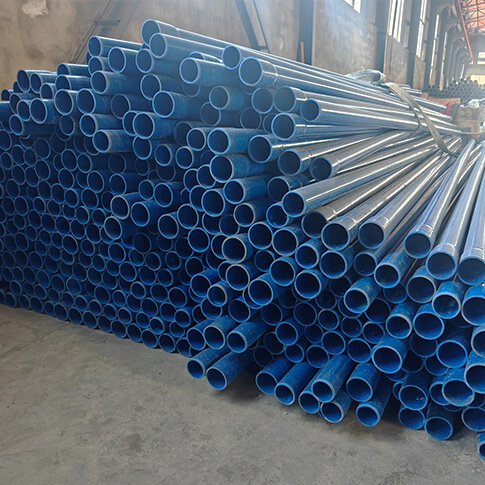

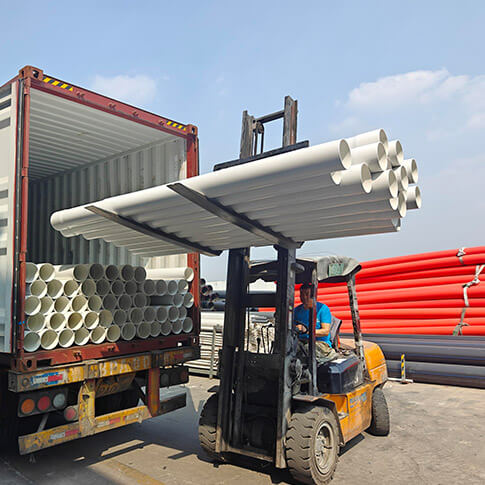

Welcome customers to visit the factory, or third party factory inspection is acceptable.

PVC pipe Specifications

Size		Pressure(PN)
mm	Inch	PN6.3		PN8		PN10		PN12.5		PN16		PN20		PN25
DN	DN	W. T.	kgs/m	W. T.	kgs/m	W. T.	kgs/m	W. T.	kgs/m	W. T.	kgs/m	W. T.	kgs/m	W. T.	kgs/m
20	1/2”	1.6	0.143	1.6	0.143	1.7	0.152	1.8	0.161	1.8	0.161	2.0	0.176	2.3	0.200
25	3/4”	1.6	0.184	1.7	0.194	1.7	0.194	1.8	0.205	2.0	0.225	2.3	0.256	2.8	0.305
32	1”	1.7	0.252	1.7	0.252	1.8	0.266	2.0	0.294	2.4	0.348	3.0	0.421	3.6	0.501
40	1 1/4”	1.8	0.337	1.8	0.337	2.0	0.373	2.4	0.442	3.0	0.544	3.7	0.658	4.5	0.783
50	1 1/2”	1.8	0.425	2.0	0.471	2.4	0.560	3.0	0.691	3.7	0.840	4.6	1.024	5.6	1.219
63	2”	2.0	0.598	2.5	0.741	3.0	0.888	3.8	1.103	4.7	1.343	5.8	1.626	7.1	1.945
75	2 1/2”	2.3	0.820	2.9	1.025	3.6	1.260	4.5	1.555	5.6	1.905	6.9	2.303	8.4	2.742
90	3”	2.8	1.197	3.5	1.484	4.3	1.806	5.4	2.239	6.7	2.736	8.2	3.288	10.1	3.955
110	4”	2.7	1.420	3.4	1.777	4.2	2.178	5.3	2.720	6.6	3.345	8.1	4.046	10.0	4.902
125	5”	3.1	1.852	3.9	2.315	4.8	2.828	6.6	3.830	7.4	4.265	9.2	5.222	11.4	6.348
140	5 1/2”	3.5	2.342	4.3	2.860	5.4	3.563	6.7	4.378	8.3	5.358	10.3	6.548	12.7	7.924
160	6”	4.0	3.059	4.9	3.725	6.2	4.674	7.7	5.748	9.5	7.008	11.8	8.572	14.6	10.405
180	6”	4.4	3.787	5.5	4.704	6.9	5.854	8.6	7.225	10.7	8.879	13.3	10.867	16.4	13.151
200	8”	4.9	4.686	6.2	5.889	7.7	7.258	9.6	8.959	11.9	10.972	14.7	13.351	18.2	16.218
225	8”	5.5	5.917	6.9	7.376	8.6	9.122	10.8	11.339	13.4	13.898	16.6	16.957
250	10”	6.2	7.409	7.7	9.145	9.6	11.312	11.9	13.888	14.8	17.062	18.4	20.888
280	10”	6.9	9.236	8.6	11.440	10.7	14.124	13.4	17.510	16.6	21.432	20.6	26.192
315	12”	7.7	11.598	9.7	14.515	12.1	17.965	15.0	22.057	18.7	27.158	23.2	33.182
355	14”	8.7	14.767	10.9	18.384	13.6	22.758	16.9	28.007	21.2	34.686	26.1	42.076
400	16”	9.8	18.743	12.3	23.374	15.3	28.850	19.1	35.659	23.7	43.713	29.4	53.405
450	18”	11.0	23.669	13.8	29.505	17.2	36.488	21.5	45.156	26.7	55.398	33.1	67.638
500	20”	12.3	29.403	15.3	36.349	19.1	45.021	23.9	55.773	29.7	68.464	36.8	83.550
560	22”	13.7	36.684	17.2	45.761	21.4	56.495	26.7	69.793
630	24”	15.4	46.392	19.3	57.772	24.1	71.573	30.0	88.227
710	28”	17.4	59.069	21.8	73.536
800	32”	19.7	75.308	24.5	93.128
900	36”	22.0	94.678	27.6	118.020
1000	40”	24.5	117.145	30.6	145.397
